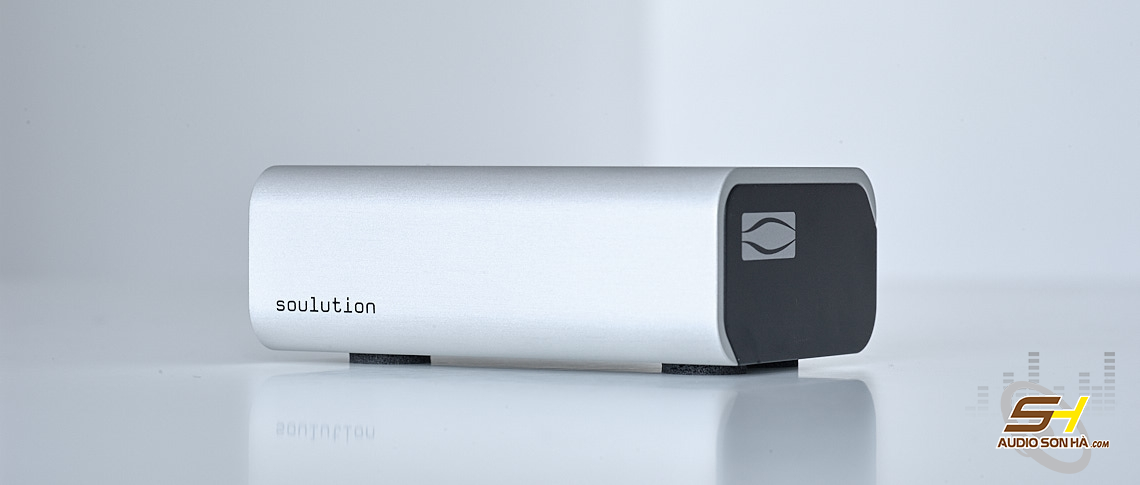

Soulution 560 D/A-Converter

Khuyến mãi:

Bảo hành: 1 năm

Hotline: 0908 812 754
Nominal voltage
Model 220 – 240 V / 50 – 60 Hz220 – 240V
Model 100 – 120 V / 50 - 60 Hz100 – 120V

Power consumption
OFF (standby)<0.5W
ON50W

Main-Out
Output voltagebalanced4Vrms
unbalanced2Vrms
Peak Output Current0.2A
Output impedancebalanced10Ω
unbalanced10Ω
Frequency response(depending on data format)DC-100kHz
Distortion (THD+N)<0.002%
Noise floor140dB
Volume range0...-80dB
Balance range<- 9...0...9 ->dB

Digital-Out
Output voltageSPDIF
500mV p-p
AES/EBU5V p-p
Output impedanceSPDIF75Ω
AES/EBU110Ω

Digital-In
Sensitivity0.3 - 5V p-p
Input impedanceSPDIF75Ω
AES/EBU110Ω
PLL – range+/- 100ppm

USB Input
Sensitivity0.5 - 3.6V p-p
PCMBit depth16 - 24Bit
Frequency32 - 192kHz
Audio Class 2.0Nativ for OSX, Driver for Windows requiredPDFUSB Driver 1.22
PDFUSB Driver 1.61

LAN Input
Sensitivity0.4 - 3.3V p-p
PCMBit depth16 - 24Bit
Frequency32 - 192kHz
DSDBit depth1Bit
Frequency2.82-5.64MHz
File FormatsFLAC (Free Losless Audio Codec)
WAV (Waveform Audio File Format)
MP3 (Mpeg Audio Layer 3)
ALAC (Apple Lossless Audio Codec)
AAC (Advanced Audio Coding)
AIFF (Audio Interchange File Format)
DSF and DFF (DSD stream file)
DXD (Digital eXtreme Definition)PDFFirmware 1.46

LINK-System+12V
