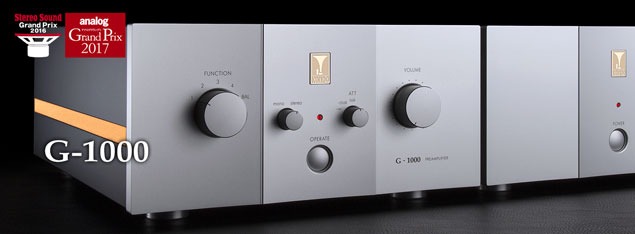

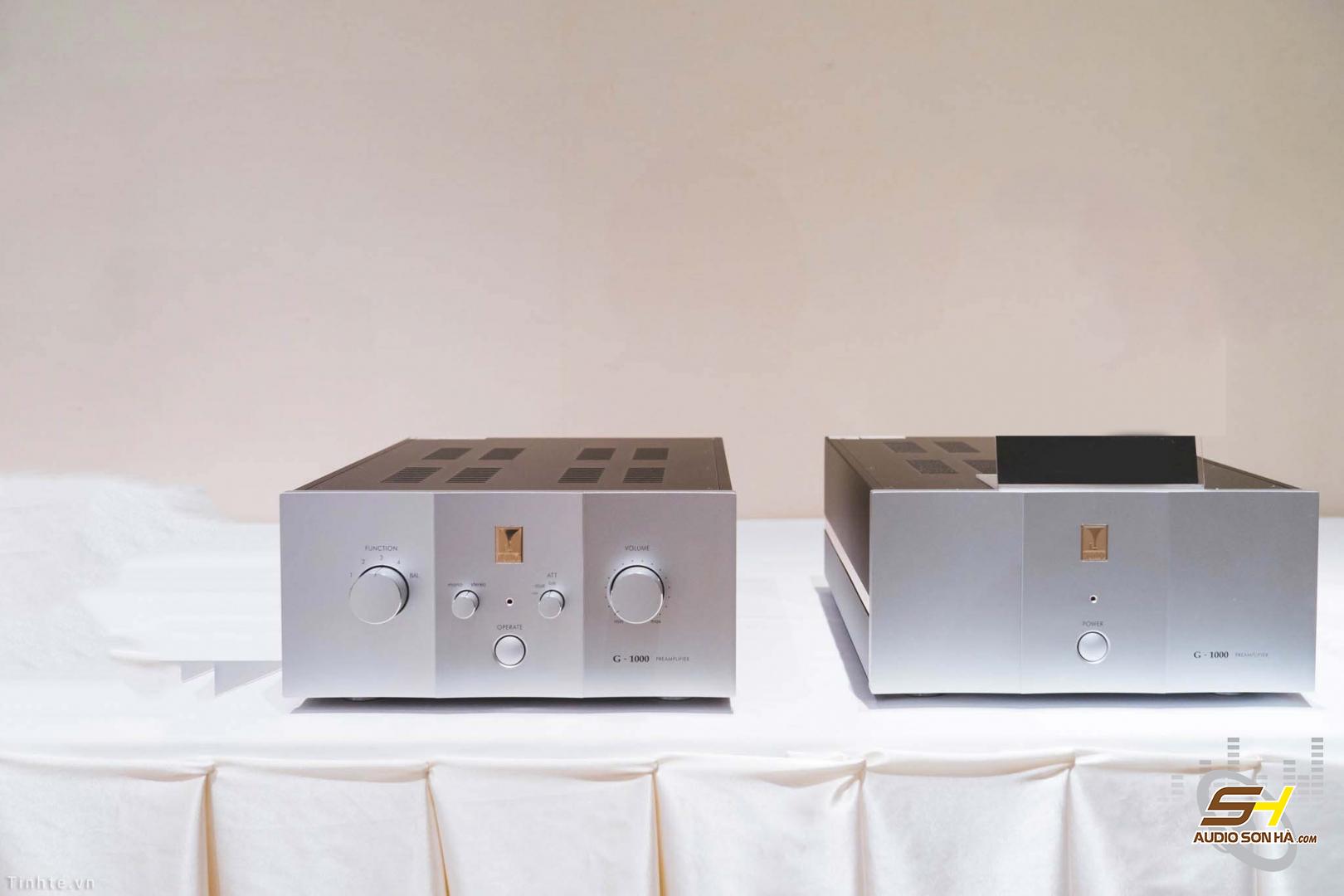

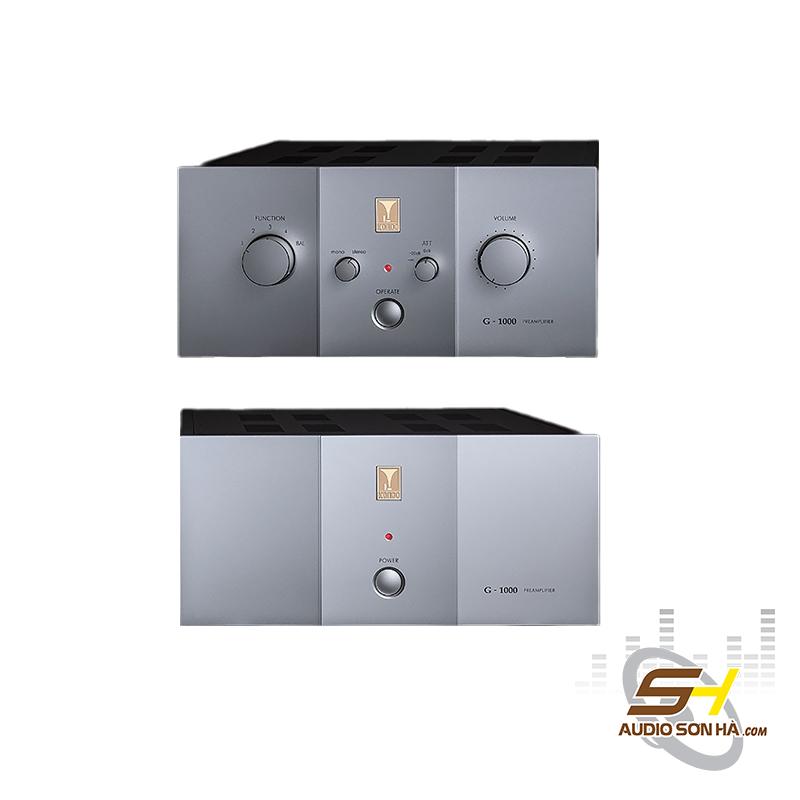

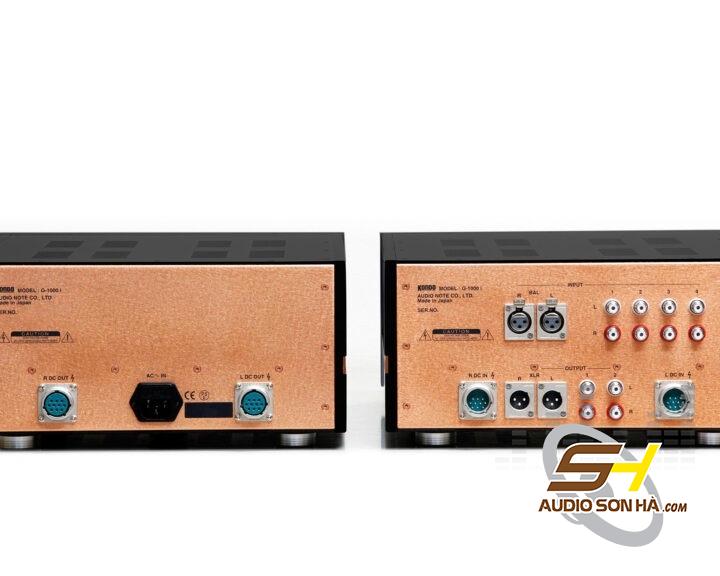

Kondo Audio Note G1000i PreAmp

Mạnh mẽ hơn, nhưng tinh tế hơn ....
  Mở rộng thế giới tinh tế cực độ sang một cấp độ khác

Là tiền khuếch đại hàng đầu của chúng tôi, G-1000 đạt tiêu chuẩn chất lượng và tiêu chuẩn cao nhất của Audio Note. Nó được làm bằng các bộ phận chất lượng cao nhất với thiết kế và bố trí mạch không thỏa hiệp. Mục tiêu của chúng tôi rất đơn giản: Để có được những biểu cảm tuyệt đỉnh cho âm nhạc! Thông qua G-1000, bạn có thể nghe thấy âm trường lớn với sự hiện diện tốt đẹp. Âm thanh của bạn sẽ có âm thanh đầy màu sắc, với môi trường phong phú nhưng định vị nhạc cụ tuyệt vời.

Tính năng, đặc điểm

• Newly developed 50 steps attenuator. The sheer volume of musical information uncovered is overwhelming.
• Vacuum tubes adopted are 6072. Basic circuit is direct-coupling of plate follower and cathode follower. The parallel configuration (of plate follower) secured low output impedance for higher clarity. True balance input is added to G-1000 through adopting new in-house silver winding input transformer.
• Capacitors groups are distributed along the line stage. This design serves big power supply capacity while signals loop can be shortened as much as possible.
• All premium parts are used at G-1000. SSW (Silk Silver Wire), silver foil signal capacitors, original power transformer and choke are adopted. Main chassis is made of copper.
• For providing a secure operating condition for G-1000, a large scale shunt type heater power supply circuit is newly used.

Audio Note Original Attenuator

50 steps attenuator (50kΩ) is our new original design. The aerospace grade resistors were chosen after a long period of serious listenings and comparisons. This new attenuator unleash more details, but much quieter because resistors are mounted on a best quality rotary switch and shielded by a full copper chassis.

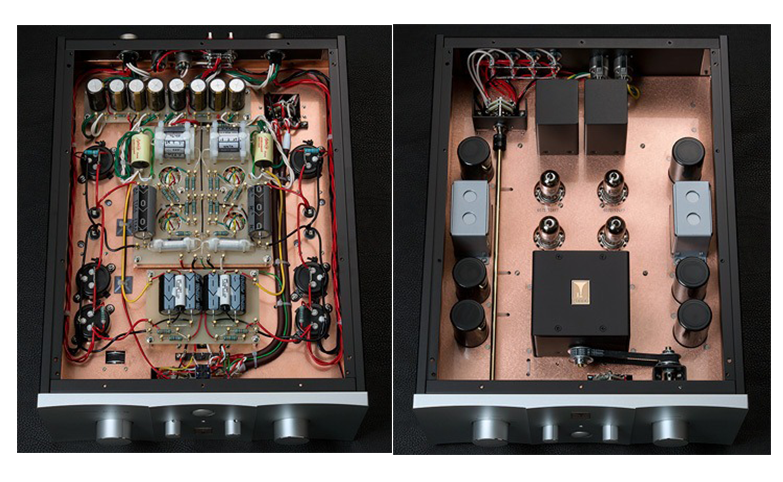

Line amplifier unit

Modular design is one of the iconic designs of Audio Note new generation amplifiers. It is now fully symmetric and independent for left and right channels at G-1000. With the help of well distributed capacitor groups, the signal loops are shortened at the line amplifier unit.
For best matching with solid state or low input impedance power amplifier, G-1000 output impedance is 600Ω and cutoff frequency reaches 18.5Hz (under 20kΩ load).

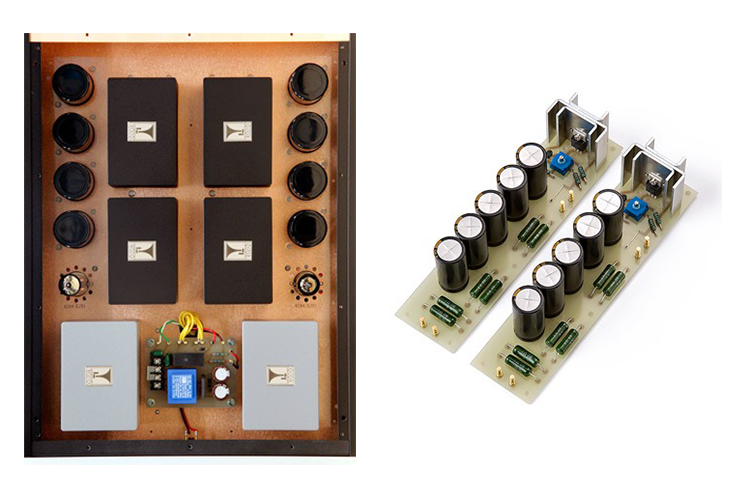

Power supply, the shunt heater circuit

Rectification tunes is 6CA4. The power transformer and chokes are arranged so that minimum vibration is obtained. 3 kinds of decoupling capacitors are selected for well balance of tonal characteristics. Power supply is strengthened by clearly separating the ripple filter capacitors and decoupling capacitors.
Combining capacitor groups and a newly developed shunt type DC6.3V heater power supply circuit, ripples at power line is highly eliminated and heater voltage is regulated within ±5%.

Ultra-high-quality parts

Audio Note original attenuator unit, silver winding input transformers, copper main chassis, silver foil capacitors, original electrolytic capacitors, silver lead resistors, SSW wiring material, flagship interconnect Ls-41, original RCA Jacks, original power transformers, chokes and a lot. Other parts such as market capacitors and resistors are selected carefully for each specific positions.

Power Cable

ACz-AVOCADO

Specifications

Thông Tin Kỹ Thuật
