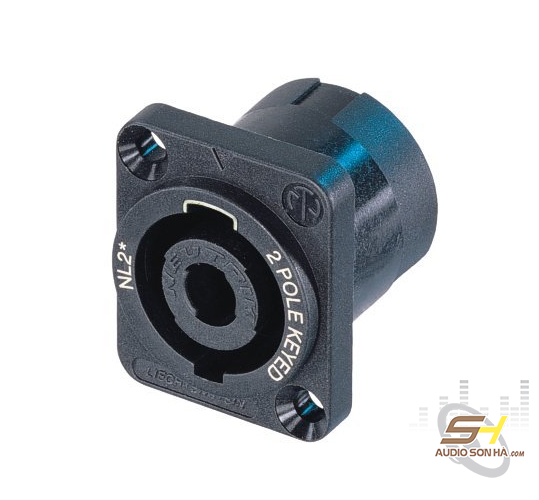

2 pole chassis connector, black D-size flange, countersunk thruholes, 3/16" flat tabs.
Does not intermate with the 4-pole cableconnector
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections.
They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Thông Tin Kỹ Thuật
NL2MP
propk
Title
NL2MP
Gender
male
Electrical
Contact resistance
≤ 3 mΩ (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 GΩ (after dampheat)
Rated current per contact
30 A rms continuous
Rated current per contact
40 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains or power supply connector!
