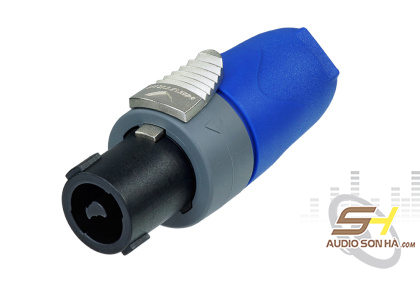

Jack loa Neutrik NL2FX/ 1 Cái

Thông Tin Kỹ Thuật

propk

Title

NL2FX

Connection Type

speakON

Gender

female

Electrical

Contact resistance

< 2 mΩ (after lifetime)

Dielectric strength

4 kVdc (peak)

Insulation resistance

> 1 GΩ (after dampheat)

Rated current per contact

40 A rms continuous

Rated current per contact

50 A audiosignal, duty cycle 50 %

Rated voltage

250 V (Insulation)

Attention

speakON is not to be used as an AC mains or power supply connector!

Mechanical

Cable O.D.

6 - 10 mm

Cable retention

≥ 220 N (subject to cable O.D. and material)

Lifetime

> 5000 mating cycles

Wiresize

1.5 - 4 mm²

Wiresize

16 - 12 AWG

Wiring

screw type terminals or soldering

Locking device

Quick Lock (latch)

Material

Contact plating

4 µm Ag

Contacts

Brass (CuZn39Pb3)

Insert

PBTP 20 % GR

Locking element

Zinc diecast (ZnAl4Cu1)

Shell

PBTP 20 % GR

Strain relief

Polyacetal (POM)

Environmental

Flammability

UL 94 HB

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C
