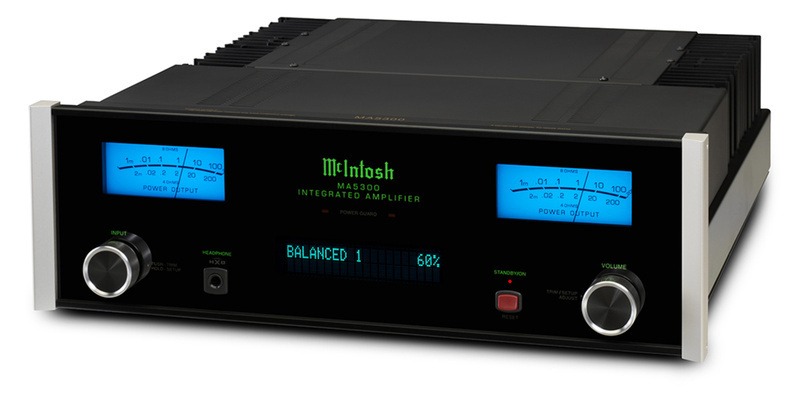

Âmpli McIntosh MA-5300

ELECTRONIC SPECIFICATIONS

POWER OUTPUT PER CHANNEL

100 Watts into 8 Ohms
160 Watts into 4 Ohms

NUMBER OF CHANNELS

2

SPEAKER IMPEDANCE

4 or 8 Ohms

RATED POWER BAND

20Hz to 20kHz

TOTAL HARMONIC DISTORTION

0.005%

DYNAMIC HEADROOM

1.8dB

FREQUENCY RESPONSE +0,-0.5DB

20Hz to 20kHz

FREQUENCY RESPONSE, +0, -3DB

10Hz to 100kHz

SENSITIVITY PHONO (MOVING COIL)

N/A

SENSITIVITY PHONO (MOVING MAGNET)

2.5mV

SENSITIVITY HIGH LEVEL (BALANCED / UNBALANCED)

0.5V/0.25V

SENSITIVITY (POWER AMP INPUT)

1V

SIGNAL TO NOISE RATIO (MOVING COIL)

N/A

SIGNAL TO NOISE RATIO (MOVING MAGNET)

82dB

SIGNAL TO NOISE RATIO (HIGH LEVEL)

95dB

SIGNAL TO NOISE RATIO (POWER AMP INPUT)

110dB

INPUT IMPEDANCE (BALANCED / UNBALANCED)

20K/20K

DAMPING FACTOR

8 Ohms: >200
4 Ohms: >100

MAXIMUM OUTPUT (BALANCED / UNBALANCED)

8V Unbalanced

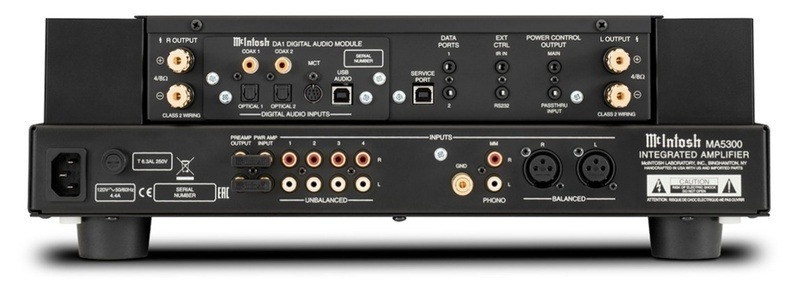

CONNECTIVITY

BALANCED INPUT

1

UNBALANCED INPUT

4

PHONO INPUT MOVING COIL

0

PHONO INPUT MOVING MAGNET

1 (fixed loading)

UPGRADEABLE DIGITAL AUDIO MODULE

Yes

DIGITAL COAXIAL INPUT

2

DIGITAL OPTICAL INPUT

2

DIGITAL MCT (DIN) INPUT

1

DIGITAL USB INPUT

1

BALANCED VARIABLE OUTPUT

0

UNBALANCED FIXED OUTPUT

0

UNBALANCED VARIABLE OUTPUT

1

HEADPHONE OUTPUT

1/4" High Drive with Headphone Crossfeed Director (HXD®)

SUBWOOFER OUTPUT

0

AM/FM TUNER OPTION

No

HOME THEATER PASSTHRU

Yes

UNBALANCED ANALOG CONNECTOR TYPE

Standard

SPEAKER BINDING POST TYPE

Standard

SERVICE PORT

1

DIGITAL AUDIO SPECIFICATIONS

DIGITAL-TO-ANALOG CONVERTER (DAC) TYPE

8-channel, 32-bit/192kHz PCM/DSD, Quad Balanced

DIGITAL COAXIAL INPUT SAMPLE RATE

24-bit/44.1kHz to 192kHz

DIGITAL OPTICAL INPUT SAMPLE RATE

24-bit/44.1kHz to 192kHz

DIGITAL MCT (DIN) INPUT SAMPLE RATE

16-bit/44.1kHz (CD)
DSD64 (SACD)

DIGITAL USB INPUT SAMPLE RATE

32-bit/44.1kHz to 384kHz (PCM)
DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz

CONTROL

TONE CONTROLS

Bass and Treble

TONE BYPASS AND INPUT ASSIGN

Yes

RS232 CONTROL INPUT

Yes

POWER CONTROL OUTPUT

1 Main

REAR PANEL DATA PORT

2

REAR PANEL IR SENSOR INPUT

Yes

INPUT LEVEL MATCH

Yes

GENERAL SPECIFICATIONS

VACUUM TUBE OR SOLID STATE

Solid State

OUTPUT AUTOFORMER

No

OUTPUT METERS

Yes

DUAL LAYER CHASSIS

Yes

CHASSIS FINISH

Black painted steel

MCINTOSH MONOGRAMMED HEATSINKS™

Yes

POWER REQUIREMENT

120V 50/60Hz, 2.3A

STANDBY POWER REQUIREMENT

<0.25 Watts

WEIGHTS & DIMENSIONS

DIMENSIONS (W X H X D)

17-1/2" (44.45cm) x 6" (15.24cm) x 22" (55.88cm)

WEIGHT

38 lbs (17.2 kg)

SHIPPING WEIGHT

55.5 lbs (25.2 kg)
