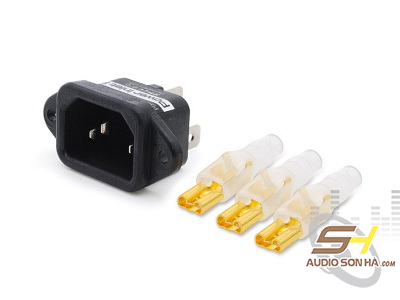

Oyaide Power Inlet R / Bộ

Thông Tin Kỹ Thuật

Model Power Inlet R

Material of blade Phosphor bronze

Plating Platinum + Palladium

Faston Terminals JIS　F6.35（connedted to inner side of the blade）

Body 30% Glass filled PBT

Weight 13.5ｇ

Volt/Amp

125V・15A (CSA)

250V・10A (VDE,SEMKO,KEMA,etc)

Withstand Voltage AC 2,000V/1min

Heat resistance 94V-0　E45034

Appropriate screw： 3mm x 2

Dimension of a mounting hole 20mm ｘ 27.5mm　R4

Applicable standard IEC320(EN60320)/EN60320/CSA22.2 No.182.3M/JIS
